JK flipflop State Machine

An example of a simple state machine is a J-K flip-flop. A J-K flip-flop is sequential device with two inputs, two outputs, and clock input. The J-K flip-flop outputs change on negative edges of the CLK signal. The NQ output is the inverted Q output.

  • The Q output turns '1' when J = '1' and K = '0'.
  • The Q output turns '0' when J = '0' and K = '1'.
  • The Q output turns the opposite value when both J = '1' and K = '1'.
  • The Q output remains unchanged when both J = '0' and K = '0'.

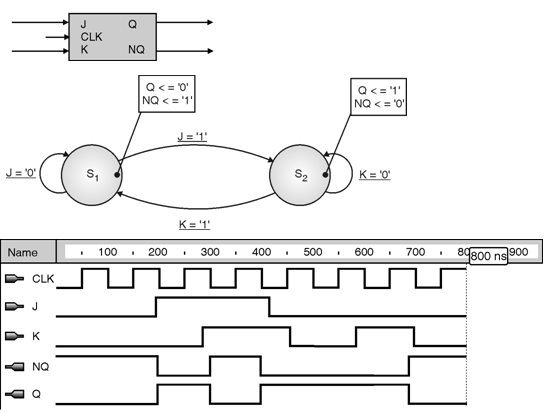

The above description is sufficient to create a state diagram for the J-K flip-flop. Figure below, state diagram includes all basic diagram items, which are :
  • States
  • Transitions
  • Transition condition
  • Actions
